Mikrotik GrooveA 52 ac 2.4GHz/5GHz Backbone/CPE with 802.11ac

Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS.

Weatherproof, durable and ready to use. Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilise the full benefit of 802.11ac high speed wireless.

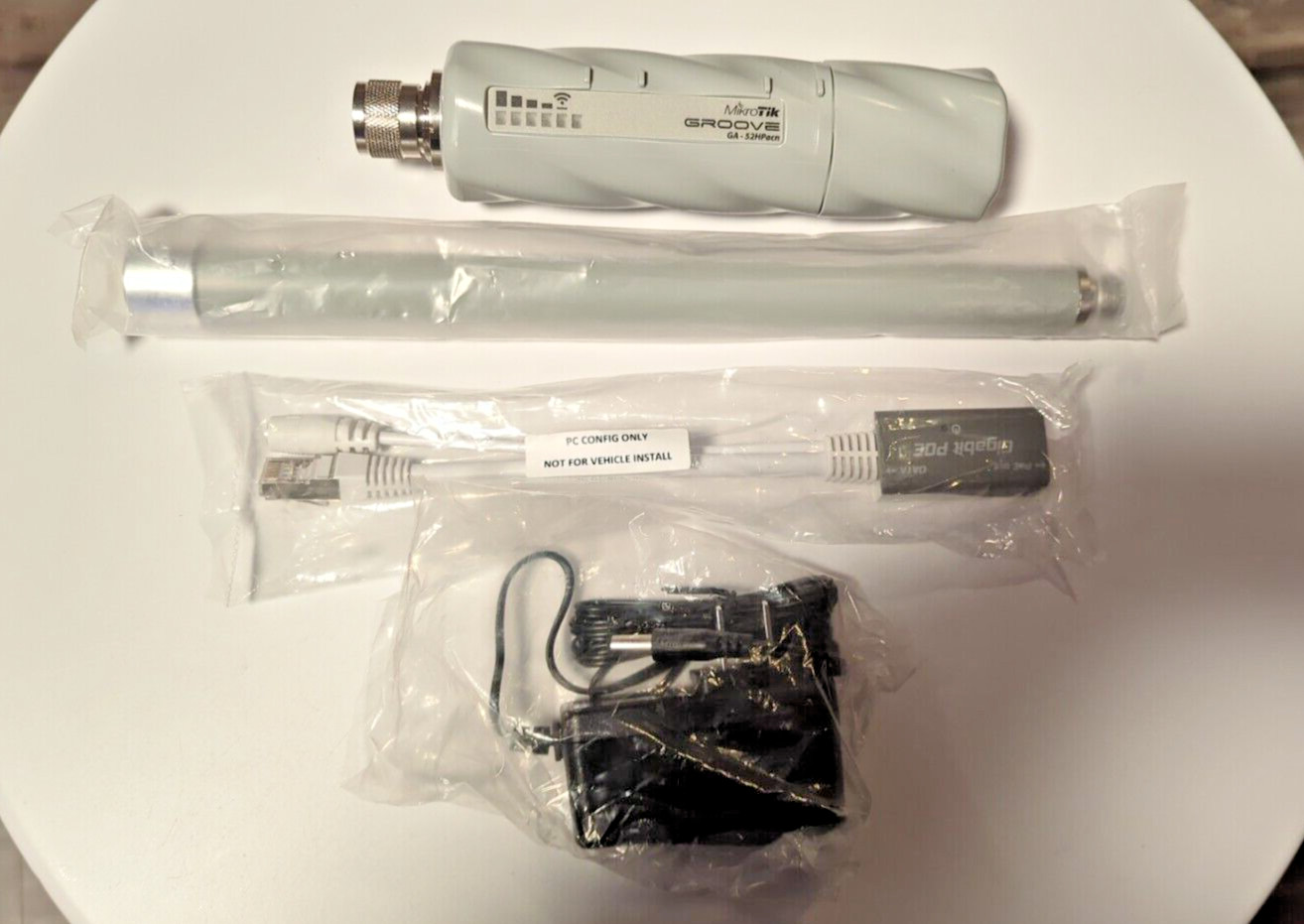

The Groove A (AP model) comes with Level 4 license and includes a Dual Band 2.4/5GHz Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz), so you can use the unit right out of the box, or use your own antenna.

RBGrooveGA-52HPacn (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

SpecificationsDetailsProduct codeRBGrooveGA-52HPacnArchitectureMIPSBECPUQCA9556CPU core count1CPU nominal frequency720 MHzDimensions177 x 44 x 44 mmLicense level4Operating SystemRouterOSSize of RAM64 MBStorage size16 MBStorage typeFLASHTested ambient temperature-40°C to 70°C

PoweringDetailsPoE inPassive PoEPoE in input Voltage10-30 VNumber of DC inputs1 (PoE-IN)Max power consumption5 WWirelessDetailsAntenna gain dBi for 5 GHz/2.4 GHz6Wireless 5 GHz/2.4 GHz standards802.11b/g/n, 802.11a/n/acWi-Fi generation4Wireless 5 GHz/2.4 GHz Max data rate433 Mbit/sWireless 5 GHz/2.4 GHz number of chains1Wireless 5 GHz/2.4 GHz chip modelQCA9889EthernetDetails10/100/1000 Ethernet ports1OtherDetailsPCB temperature monitorYesVoltage MonitorYesWireless specifications2.4 GHzTransmit (dBm)Receive Sensitivity1MBit/s24-9711MBit/s21-916MBit/s24-9354MBit/s21-77MCS024-93MCS720-725 GHzTransmit (dBm)Receive Sensitivity6MBit/s26-9354MBit/s21-78MCS026-93MCS721-74MCS919-69
